Default best design for my loop

HI,

im very newbie in water cooling and i will order some part, but before i want to be sure of my Loop design

first my rig
NZXT switch 810
Asus Rampage IV Extreme
Intel i7-3930K (little overclock, 4.2 to 4.5)
32 GB G.Skill 2133
2 x XFX HD7970 OC Black edition ( i will not overclock GPU)

what i have for water cooling
1 x 360 x 35mm thick rad in push and pull on top of the case
1 x 240 x 63mm thick rad in push and pull at the bottom of the case
2 x swiftech mpc355 pump
XSPC dual bay 5.25 reservoir for 2 laing dcc pump
1/2ID - 3/4OD tubing and fitting

i have 3 choice of loop

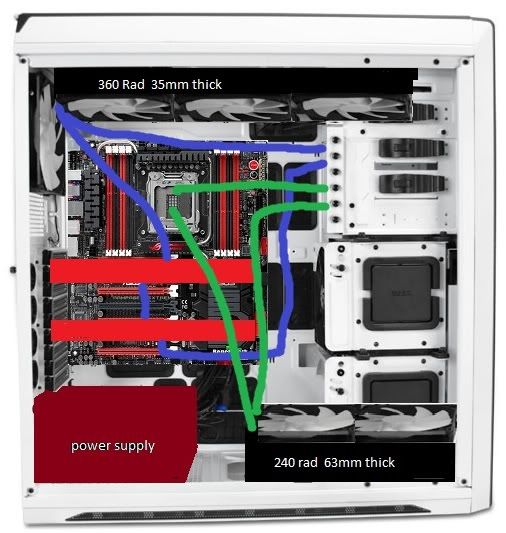

firt, 2 loops,

i think look messy, top radiator for GPU and bottom for CPU, to much cross tubing and expensive

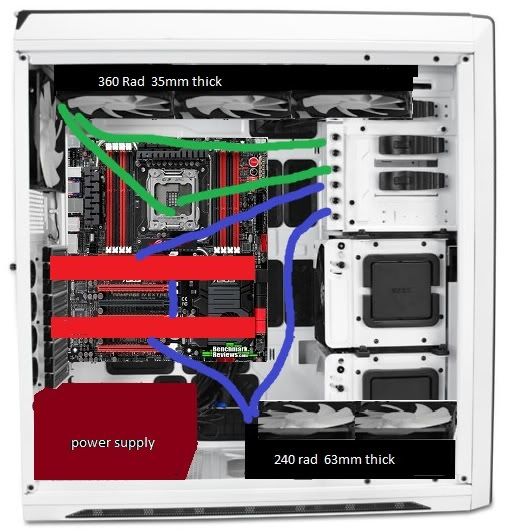

second, 2 loop but swap rad,

now look better, but still expensive, and a 240x 63mm thick rad is enough for a dual GPU????

and third, 1 loop for everything

look very good, save more than $200, but im not sure about performance
res/pump -> bottom 240 rad -> GPU1/GPU2 -> top 360 rad - CPU -> res/pump
the order is correct?
1 mcp355 is enough for my single loop setup????

like i said, i will not make big overclock, only on cpu (GPU already OC)

thanks for your help
Reply With Quote
  #2 (permalink)
Old March 25, 2012, 10:44 AM
Dazmode's Avatar
Hall Of Fame

Join Date: Mar 2009
Location: Oakville
Posts: 1,688
Default

I would say 3 with serialized pumps. All rads pushing out.
I also think triple + single rads will do.
__________________
Venom Build: Caselabs SMH10, 3930k, 2x GTX680, MSI BigBangII, 8x Dominators, 2 x D5 , Quad Rad, Adaptec 7805, 4x WD Red, 2x Intel 510, Aquaero 5, 11x GT
Silent Sniper Build: Final Video, XSPC H1 Cube case, Supreme HF, 2xGTX470, GA G1 Sniper, Dominators, 2x Triple rad, Triebwerk Fans, 2x D5, Custom Sleeving
Orange Build: Final Video
HTPC Build: Final Video
Reply With Quote
  #3 (permalink)
Old March 25, 2012, 10:50 AM
Adzsask's Avatar
Allstar
F@H

Join Date: Dec 2011
Location: SK
Posts: 831

My System Specs

Default

One pump will do just fine, 2 maybe for redundancy. This loop can be easily handled by a single pump, but I would recommend 2 pumps just to ensure no huge failure due to no water flowing in your loop. I agree with daz, 1 360mm, and a 120mm should cool you loop nicely, and again I would blow all the rads outwards to keep case ambient's down.(mounted my rad externally to keep normal case airflow in my case)
Reply With Quote
  #4 (permalink)
Old March 25, 2012, 12:01 PM
snef's Avatar
Rookie

Join Date: Feb 2012
Location: Moncton, New Brunswick
Posts: 48
Default

Ok thanks

But i have a xspc dual 5.25 res for dual dcc pump


Can serial with this res?
Out of first res to in of the second res?
and use intake of the first res and out of the second for my loop??
or i need to buy a Koolance res

Thanks for your help very appreciate

Last edited by snef; March 25, 2012 at 12:06 PM.
Reply With Quote
  #5 (permalink)
Old March 25, 2012, 07:56 PM
WhippWhapp's Avatar
Top Prospect
F@H

Join Date: Apr 2010
Posts: 187

My System Specs

Default

A triple plus a single rad, with MCP35x did fine for my dual GTX 480's and 2600k when I did my first loop.
Reply With Quote
  #6 (permalink)
Old March 25, 2012, 08:13 PM
matari's Avatar
Top Prospect

Join Date: Nov 2010
Posts: 126
Default

One loop would be best options. I really will only do a second loop if I cool a chipset, and just because it makes it easier to clean.
Reply With Quote
  #7 (permalink)
Old March 25, 2012, 10:06 PM
Top Prospect

Join Date: Mar 2012
Location: Calgary, Alberta
Posts: 90

My System Specs

Default

Here's my concept, it might work for you:



Chomie's Watercooling Concept
Reply With Quote
  #8 (permalink)
Old March 26, 2012, 12:59 AM
Prolab's Avatar
MVP
F@H

Join Date: Jul 2010
Location: Mississauga
Posts: 484

My System Specs

Default

So if all rads are pushing out... wouldnt that create a negative airflow?

As well, i can only think of two areas for intake:

- The back exhaust flipped to intake
- Removing the top HD cage and insert a fan there

Personally, id have the bottom rad as an intake, the back exhaust flipped to intake if the HDD cage is still required and the top rad as an exhaust.
__________________

Gaming Rig:

-Swiffy MCP35x X2 & 240 Rad, (2) 480 EX XSPC Rad, Heatkiller rev. 3.0, i7 3930k @ 4.7 Ghz, 16 GB G.SKILL F3, Asus Rampage IV Extreme, XFX R9 290 w/ XPSC WB, Crucial M4 128GB & 240 GB Intel 530, (5) 3 TB Toshiba Drive, Corsair AX1200, Win 7 Ultimate 64-bit

HTPC Rig:

-AMD 1100T, Gigabyte UD5, 16 GB G.Skill RAM, Asus 650ti Boost, 500 GB WD Black, (5) 2 TB WD Green, (1) 3 TB Toshiba HD, (1) 2 TB Samsung F4, Fractal Design R3, Antec 650 watt PS, Win 7 Ultimate 64-bit
Reply With Quote
  #9 (permalink)
Old May 10, 2012, 06:27 PM
Rookie

Join Date: Apr 2012
Location: Richmond Hill, Ontario
Posts: 25

My System Specs

Default

personally, i would go with a single loop as well with two pumps for redundancy :)

i'd also make all fans intake except for the fans on the 360 rad so that you'll have positive airflow (prevent too much dust from entering your case).
yes, the bottom fans would be pulling in warm air, but the front intake fan is pulling in cool air so it kind of balances out, at least enough so that it won't affect the 360 rad's temps too much.
i'm just throwing my opinion out there...hope nobody comes and burns me D:
Reply With Quote
