Default Petra's gel stuff ... any good ?

Hey dude/ettes,

So I've succesfully stuffed a w/c setup into an A05B (never again...) and until I make a wooden/acrylic case, I have to figure out how to get rid of the vibrations. I changed the pump to a DDCX-Pro, which is quieter, but still has vibration issues. So I went ghetto and stuffed some bubblewrap underneath it, but I'm still getting vibration transferred into the case.

Googling turns up Petra's stuff. Has anyone had any experience with it? Any good ?

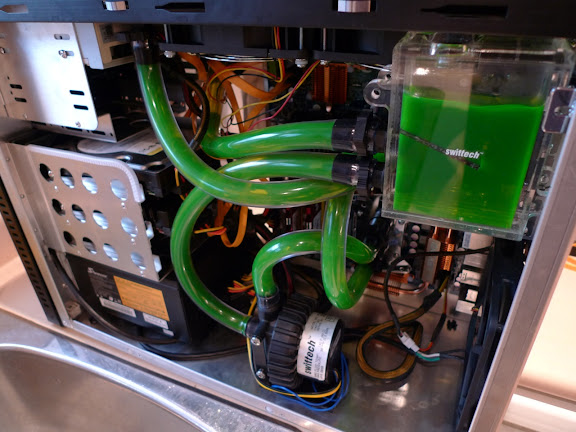

OR other alternatives ? Here's my setup with the 655 pump, not a lot of room to do any rubber band tricks. (no rating my cables, not until I'm finally happy, then I'll tidy it up - want to get to the point the pumps so quiet then I can change over to noctua fans)



Thanks!
Reply With Quote
  #2 (permalink)
Old December 6, 2008, 07:29 AM
Sniper's Avatar
Allstar

Join Date: May 2008
Location: Halifax NS
Posts: 700
Default

Did you try rubber mounts for the pump? I heard the Petra's stuff was good as well. I'm going to try these I think.

Alphacool Pumps - Eheim/Hydor/Laing Attachment Uncoupling Set 4 Dampers Products Model: 13701 [13701] : Performance-PCs.com, ... sleeve it and they will come
Reply With Quote
  #3 (permalink)
Old December 6, 2008, 08:17 AM
sswilson's Avatar
Moderator
F@H

Join Date: Dec 2006
Location: Moncton NB
Posts: 14,570

My System Specs

Default

If you're still looking to "gheto" something up I'd imagine that the Dr. Scholls gel inserts for shoes would be as good or better WRT what kind of material it's made out of. :)
__________________
MSI Z87I Gaming AC / i5 4670K / 2X 4G Gskill 1866 DDR3 / XFX XTR 750 / EVGA GTX 680 SC+ 2GB / Intel DC S3700 200G / random 160G Sata HDD
Inwin 904 / Swiftech MCP655-b / Alphacool NexXxos XT45 120 Rad / 2X Scythe GT AP-15 / EK Supreme HF / Dell UltraSharp U2412M

Asrock AM1H-ITX / AM1 Athlon 5350 / 2X4G Gskill PC3-14900 / Intel 6235 Wi-Fi / 90W Targus Power Brick / 320G Seagate Momentus / Mini-Box M350 / 1X 22" Dell IPS / 1X 22" HP
Reply With Quote
  #4 (permalink)
Old December 6, 2008, 08:19 AM
Sniper's Avatar
Allstar

Join Date: May 2008
Location: Halifax NS
Posts: 700
Default

lol @ Ghetto
Reply With Quote
  #5 (permalink)
Old December 6, 2008, 09:48 AM
Dashock's Avatar
Hall Of Fame
F@H

Join Date: Nov 2007
Location: Toronto
Posts: 1,938
Default

Get a thick layer of Thermacole its cheap. You can find thick layers at the grocery or hardware stores. I got mine from a BBQ box at work. You know the white thick stuff used for packing things. Cut a piece and stick that under the pump. I sed the sticky pad... stopped my vibrations.

The stuff in the pic lol

__________________
Intel Xeon E3110 @ 3.0ghz
XFX 8800 GT Alpha Dog Edition
Asus P5Q-E
Mushkin Ascent Redline 8000 4gb DDR2 @ 1066 5-5-5-15 2.05v
OCZ 600W GameXstream
Seagate 7200.11 500gb
Seagate 7200.10 320gb
Antec Spot Cool
Logitech X-230
Samsung 32" 720P HDTV



Coolermaster Cosmos S/
Swiftech Mcp655/ MCR-320-QP/ 6X Noctua NF-P12'S/ Swiftech Apogee GT/ Swiftech Mcw-60/ Swiftech Micro-Res.

Reply With Quote
  #6 (permalink)
Old December 7, 2008, 06:38 AM
Top Prospect

Join Date: Jul 2008
Posts: 119
Default

IMO the best way to attach a pump to a case is with industial strength valcro you can buy it at home depot. It removes easily and will stay attached if you tip your case upside down and the best part it is it makes your vibrating pump silent.
__________________
Processor: Intel I5 750 @4GHz
Motherboard: Asus Maximus 3 Formula P55
RAM: G.SKILL Trident @ 1073MHz
Graphic: XFX ATI Radeon HD 5850 1000/1000
HDD:Kingston 128GB SSDNow V Series SNV425-S2 Gen 2 SSD
Monitor: HP w2408h
Power Supply: SilverStone Zeus ST85ZF 850W
Case: HP Blackbird
Reply With Quote
  #7 (permalink)
Old December 7, 2008, 08:53 PM
Rookie

Join Date: Dec 2008
Posts: 9
Default

Hey guys, thanks for all the responses. I'm surprised thermacole would be that good at decoupling, but I'll give it a shot. Dr Scholls sounds awesome just for the comedy factory alone...

Velcro was a big fail. I tried that as one of the first things out of the box. Now I'm at 2x layers of thin bubble wrap, and 1 x medium density foam packing (1/8" thick). Will try suggestions above.
Reply With Quote
  #8 (permalink)
Old December 7, 2008, 09:12 PM
MpG's Avatar
MpG MpG is offline
Hall Of Fame

Join Date: Aug 2007
Location: Kitchener, ON
Posts: 3,144
Default

Just for the record, the gel-stuff IS good. Can't remember what the exact chemical name is, but it's strangely bouncy/spongy, while still being solid. Have yet to come across another kind of foam/gel that's as well suited. Excellent stuff, the only caution is that you might want to think twice about using it for the DDC-type (aka Swiftech MCP350/355) pumps, since it's an insulator, and the bottom of those pumps can get rather hot, especially the more powerful versions.

That said, I'd expect the other solutions mentioned should work too.
__________________
i7 2600K | ASUS Maximus IV GENE-Z | 580GTX | Corsair DDR3-2133
Reply With Quote
  #9 (permalink)
Old December 7, 2008, 09:18 PM
Supergrover's Avatar
Hall Of Fame
F@H

Join Date: Dec 2006
Location: Okanagan Falls, British Columbia
Posts: 4,248

My System Specs

Default

Quote:
Originally Posted by sswilson View Post
If you're still looking to "gheto" something up I'd imagine that the Dr. Scholls gel inserts for shoes would be as good or better WRT what kind of material it's made out of. :)
Thanks Steve I have been wondering what to use behind my 3G mount.
__________________
R.I.P.

Quote:
Originally Posted by 3.0charlie View Post
My knuckles are bleeding from fishing through walls a new CAT6 network cable... I found fresh, untapped electrical outlets...
"It's all in the Reflexes"-Jack Burton
Reply With Quote
  #10 (permalink)
Old December 7, 2008, 11:56 PM
enaberif's Avatar
Hall Of Fame

Join Date: Dec 2006
Location: Calgahree, AB
Posts: 10,611
Default

I'm going to say you perhaps are getting vibrations too from your res.

Try dampening that too.
