Hey everybody, i was wondering how long the screw length are to hold the fans on the Swiftech MCRX20-XP320. Thanks to anyone who replys
Reply With Quote
  #2 (permalink)
Old December 26, 2011, 03:56 PM
lowfat's Avatar
Moderator

Join Date: Feb 2007
Location: Grande Prairie, AB
Posts: 7,927

My System Specs

Default

30mm assuming you are a 25mm fan and a fan grill.

I highly suggest taking a look at the Koolance mounting bolts though. They make things so easy.
Koolance Radiator Mounting Screw & Nut, 25mm Products Model: BLT-HX025 [BLT-HX025] : Performance-PCs.com, ... sleeve it and they will come

EDIT: Although you would need to tape the radiator to M4.
Reply With Quote
  #3 (permalink)
Old December 26, 2011, 04:25 PM
KaptCrunch's Avatar
Hall Of Fame

Join Date: Feb 2008
Location: Ontario
Posts: 2,923
Default

add the grill,sheet metal, fan , rad or case

or mock up with screw and see how much protudes out after fan.....max 3mm
Attached Images

Reply With Quote
  #4 (permalink)
Old December 27, 2011, 11:26 AM
Rookie

Join Date: Dec 2011
Posts: 23
Default

Thanks
Reply With Quote
  #5 (permalink)
Old December 27, 2011, 12:07 PM
Rookie

Join Date: Dec 2011
Posts: 23
Default

is their screws that have a phillips head on it because i want a secure mounting of the fan to the radiator
if you have any suggestions please tell me and post a link if you can Thank You
Reply With Quote
  #6 (permalink)
Old December 27, 2011, 12:13 PM
Rookie

Join Date: Dec 2011
Posts: 23
Default

So i need 28mm length screw with threading that will fit in any radiators
Reply With Quote
  #7 (permalink)
Old December 27, 2011, 12:20 PM
Rookie

Join Date: Dec 2011
Posts: 23
Default

Quote:
Originally Posted by lowfat View Post
30mm assuming you are a 25mm fan and a fan grill.

I highly suggest taking a look at the Koolance mounting bolts though. They make things so easy.
Koolance Radiator Mounting Screw & Nut, 25mm Products Model: BLT-HX025 [BLT-HX025] : Performance-PCs.com, ... sleeve it and they will come

EDIT: Although you would need to tape the radiator to M4.
what do u mean by taping
Reply With Quote
  #8 (permalink)
Old December 27, 2011, 12:37 PM
Zer0's Avatar
Top Prospect

Join Date: Dec 2011
Location: Vancouver, BC
Posts: 72

My System Specs

Default

It's a typo, he means "tap". The fan mount threads on Swiftech rads are 6-32.
Reply With Quote
  #9 (permalink)
Old December 27, 2011, 01:07 PM
KaptCrunch's Avatar
Hall Of Fame

Join Date: Feb 2008
Location: Ontario
Posts: 2,923
Default

Quote:
Originally Posted by vinsonnguyen View Post
what do u mean by tapping

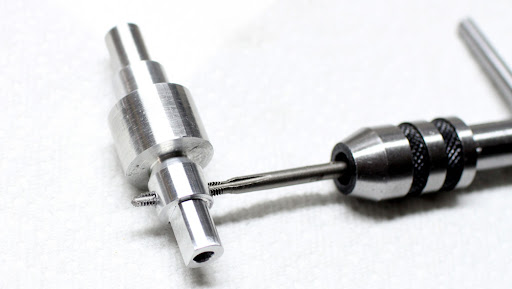

cut threads into material note just only go 1 thread past rad fan support or will punture rad
Reply With Quote
  #10 (permalink)
Old December 27, 2011, 01:34 PM
Rookie

Join Date: Dec 2011
Posts: 23
Default

now i need to find a treader for m4, any ideas?
